Technical data sheet
Lighting
- LED 40W (integrated)
- Luminous flux: 3500Lm.
- Dimmable light intensity
- Colour temp. CCT:
- 3000-4000-6000K
- (warm-neutral-cool)
- Lifetime: 30000h.
- ON/OFF: 15000
- CRI: >80
- P.F.: 0.9
Functionalities
- DC motor
- 6 speeds
- Consumption (W): 5/7/10/12.5/15/21
- Speed (RPM): 285/340/390/430/470/530
- Air flow (m3/h): 3350/3860/4290/4880/5420/600
- Noise level (dB): 29/30/31/34/34/37/40
- Breeze function
- Summer-Winter function
- Timer: 1-4 H.
- Power on memory

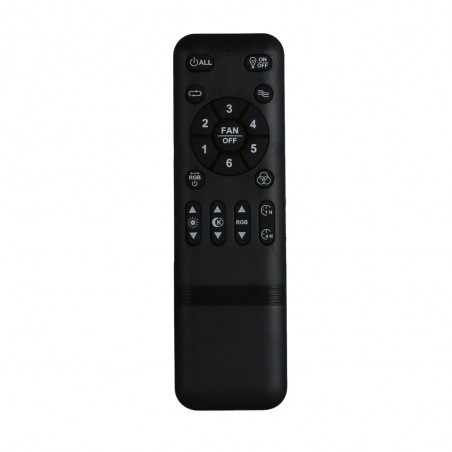

- Remote control (included)
Characteristics
- Height: 38-48 Cm.
- Diameter:
- Closed: 32 Cm.
- Open: 55 Cm.
- Finish:
- White / Black / Silver
- Frame: Steel
- Retractable blades (3): PC
- Diffuser: PVC
Other information
- Weight: 2.9 Kg,
- Suitable for rooms: <13 m²
- Roof pitch: Max. 18º
- Two shafts: 10-20Cm.
- Electrical class: II
- Voltage: 220-240 V.
- Frequency: 50/60 Hz.
Assembly and installation of the ANTILA ceiling fan
Discover how to assemble and install the ANTILA LED ceiling fan in your home. Ceiling fan with retractable blades for living rooms and bedrooms. Its design is striking with a central diffuser and two ring diffusers. The fan has three colour temperatures and dimmable lighting. Quiet DC motor with six speeds.
Air Flow Crontol System (Summer-Winter)
The airflow control system will create a greater sense of comfort in both summer and winter. In summer, the descending air flow creates a cooling effect of the wind for a greater energy saving. In winter, the upward flow of air recirculates the increase of hot air to distribute heat efficiently throughout the room.
Useful tips to choose the right fan for your room
In rooms of more than 28 m² it can also be a good option to place more than one ceiling fan to center the regulation of the air flow of the area that we are using. The minimum height at which the fan must be installed is 2.40 m from the ground, in case of heights is more than 2.80 m an extension rod is required.
Ceiling fans by size
-
Small Fans
Fans with blades integrated inside or with a diameter of up to 107 centimetres are perfect for ceiling installation in small rooms (<13 m²).
-
Medium fans
For rooms between 13 and 20 m² it is recommended to use fans with moving blades with a diameter of between 107 and 132 centimetres.
-
Large fans
If your room is larger than 20 m², ceiling fans with a diameter of more than 132 centimetres are ideal.
CristalRecord - Wonderlamp.shop
CristalRecord has a long history in the distribution of interior lighting. Since 1995, the brand has evolved to become a leading company in the design, manufacture and distribution of lighting products. CristalRecord works with the aim of offering its customers solutions to the real needs of the domestic and commercial market. Specialising in LED lighting, their commitment to quality, R&D, flexibility and experience allows them to develop quality products with unique and innovative solutions.
Technical specifications
- Brand
- CristalRecord
- Lamp type
- Fan
- Lighting by room
- Bedroom
- Style
- Modern
- Height (cm)
- 38 - 48
- Material
- Acero - PC
- Diameter (cm)
- 32 - 55
- Net Weight (kg)
- 2,9
- Lighting type
- LED
- Cap
- Built in
- Power (W.)
- 40
- Lumens (lm)
- 3500
- Colour temperature (K)
- 3000 - 4000 - 6000
- Dimmable
- Yes
- Switch on (Num.)
- 15000
- Useful life (Hours)
- 30000
- IP
- 20
- Voltage (V.)
- 220-240
- Protection class
- I
- Remote control
- Yes
- Secondary Material
- PMMA
- Finish
- Blanco / Negro / Gris
- Colour memory
- YES
- Sloping roof
- Max. 18º
- Number of blades
- 3
- Number of speeds
- 6
- Timer (H.)
- 1-4 H.
- Including rod
- 2 tijas
- Engine
- DC
- Engine power (W)
- 5 / 7 / 10 / 12.5 / 15 / 21
- Rotational speed (RPM)
- 285 / 340 / 390 / 430 / 470 / 530
- Air Flow (m3)
- 3350 / 3860 / 4290 / 4880 / 5420 / 6000
- Sound level (dB)
- 29 / 30 / 31 / 34 / 37 / 40
- Smart
- No
- Folding blades
- Yes
- Reversible blades
- NO
- Lighting
- Yes
- Room size (m²)
- Menor de 13
- Integrated blades
- No
Enquiries
Latest customer questions about this product
There are no enquiries for this product
Sorry, no results found.
Do you have any questions about this product?
Send us your questions about this product by completing the form below:
Sorry, an error has occurred while making the FAQ.
You must accept the the Privacy Policy.
The FAQ has been created correctly. Please wait to be verified.
Antila Mini XS RGB ceiling fan with retractable blades. The design of this ceiling fan with a central diffuser and two ring diffusers is striking. The fan has dimmable LED lighting and colour tone as the main light and RGB LED light in the rings. Quiet DC motor with six speeds.
*RGB colour: With the remote control you can set up to 16 different RGB colour settings. The lighting of the decorative rings is fixed in 4000K daylight.
Dimensions: Height 38-48 cm.
- Concealed blades: Diameter 32 cm.
- Blades unfolded: Diameter 55 cm.
