LED fan folding blades Panam Mini CCT Dim (46W)
Ref:
85-021-36-180
LED fan folding blades Panam Mini CCT Dim (46W)
€131.94
Tax included
Tax included
32151
View ratings

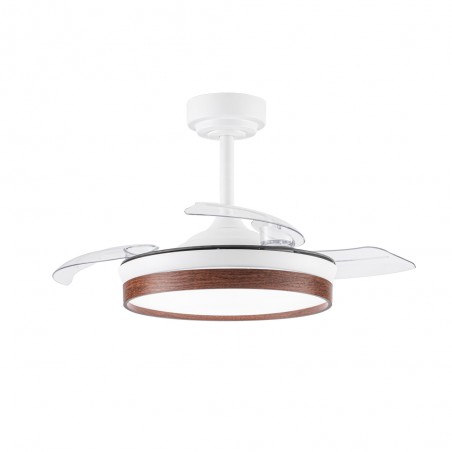

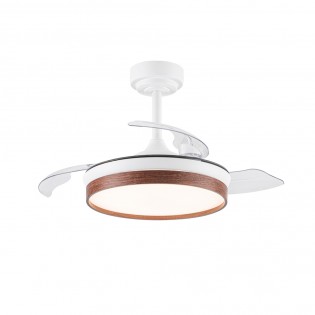

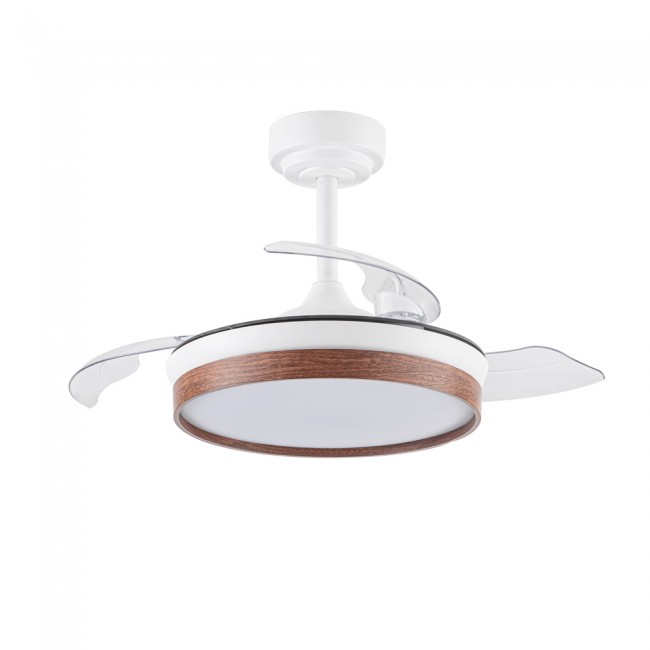

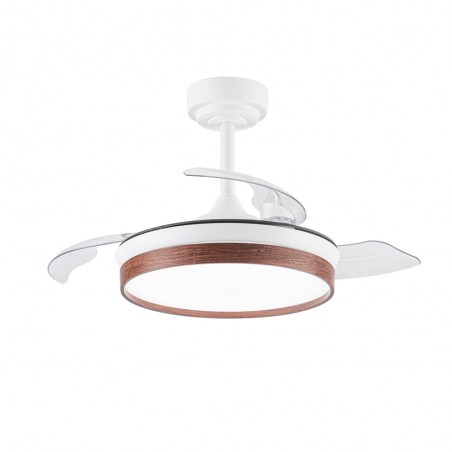

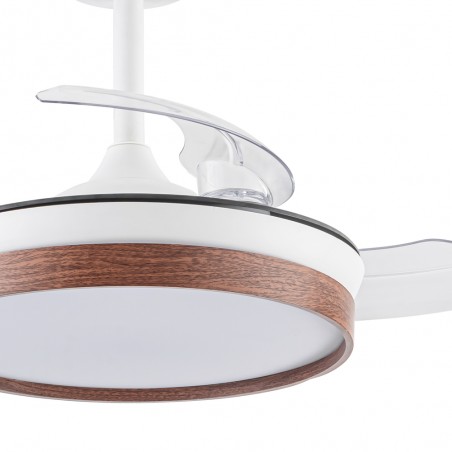

Panam Mini fan with folding blades. This ceiling fan has a Nordic style design achieved with the wood effect decorative piece (ash grey, cherry or beech). The blades are retracted over the motor when the fan is not in operation. Silent fan designed for use in small rooms (<13m2).

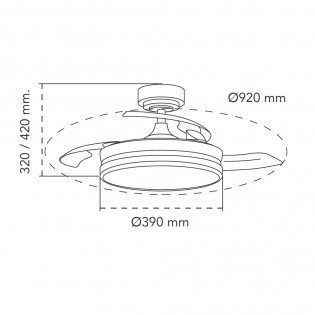

Dimensions: Height 32-42 cm.
- Concealed blades: Diameter 39 cm.
- Blades unfolded: Diameter 92 cm.
85-021-36-180
In stock
Approximate date of delivery is between Monday 16 June 2025 and Tuesday 17 June 2025
Frequently asked questions
Related
More info
Technical data sheet
Lighting
- LED 46W (integrated)
- Luminous flux: 5520Lm.
- Dimmable light intensity
- Colour temp. (CCT):
- 3000-4000-6000K
- warm-neutral-cool
- Night light mode
- Lifetime: 30000H
- ON/OFF: 15000H
- CRI: >80
Functionalities

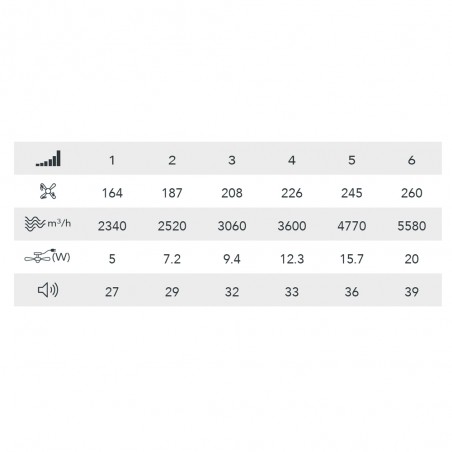

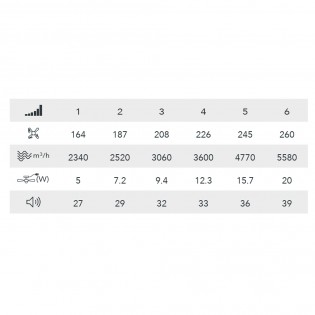

- DC motor
- 6 speeds
- Consumption (W): 5/7.2/9.4/12.3/15.7/20
- Speed (RPM): 164/187/208/226/245/260
- Air flow rate (m3/h): 2340/2520/3060/3600/4770/5580
- Noise level (dB): 27/29/32/33/36/39
- Summer-winter function
- Breeze function
- Switch-on memory
- Timer: 1-2-4H.

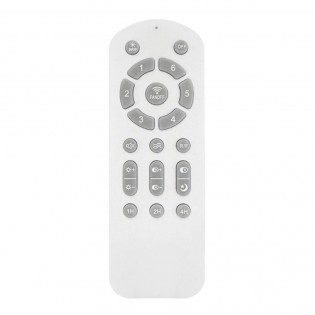

- Remote control
Characteristics
- Height: 32-42 Cm.
- Diameter: 39-92 Cm.
- Finish:
- Beech / Ash / Cherry
- Structure: Steel
- Retractable blades (3): PC
- Diffuser: PMMA
Other information
- Weight: 4.50Kg.
- Includes two shafts: 10 and 20 Cm.
- Suitable for rooms: 13-20 m²
- Suitable for sloping ceilings: <18º.
- Electrical class: I
- Voltage: 220-240 V.
- Frequency: 50/60 Hz
Air Flow Crontol System (Summer-Winter)
The airflow control system will create a greater sense of comfort in both summer and winter. In summer, the descending air flow creates a cooling effect of the wind for a greater energy saving. In winter, the upward flow of air recirculates the increase of hot air to distribute heat efficiently throughout the room.
Useful tips to choose the right fan for your room
In rooms of more than 28 m² it can also be a good option to place more than one ceiling fan to center the regulation of the air flow of the area that we are using. The minimum height at which the fan must be installed is 2.40 m from the ground, in case of heights is more than 2.80 m an extension rod is required.
Ceiling fans by size
-
Small Fans
Fans with blades integrated inside or with a diameter of up to 107 centimetres are perfect for ceiling installation in small rooms (<13 m²).
-
Medium fans
For rooms between 13 and 20 m² it is recommended to use fans with moving blades with a diameter of between 107 and 132 centimetres.
-
Large fans
If your room is larger than 20 m², ceiling fans with a diameter of more than 132 centimetres are ideal.
CristalRecord - Wonderlamp.shop
CristalRecord has a long history in the distribution of interior lighting. Since 1995, the brand has evolved to become a leading company in the design, manufacture and distribution of lighting products. CristalRecord works with the aim of offering its customers solutions to the real needs of the domestic and commercial market. Specialising in LED lighting, their commitment to quality, R&D, flexibility and experience allows them to develop quality products with unique and innovative solutions.
Technical specifications
- Brand
- CristalRecord
- Lamp type
- Fan
- Lighting by room
- Bedroom
- Style
- Nórdico
- Height (cm)
- 32 - 42
- Material
- Acero - ABS
- Diameter (cm)
- 39 - 92
- Net Weight (kg)
- 4,5
- Lighting type
- LED
- Cap
- Built in
- Power (W.)
- 46
- Lumens (lm)
- 5520
- Colour temperature (K)
- 3000 - 4000 - 6000
- Dimmable
- Yes
- Switch on (Num.)
- 15000
- Useful life (Hours)
- 30000
- IP
- 20
- Voltage (V.)
- 220-240
- Protection class
- I
- Remote control
- Yes
- Secondary Material
- PMMA
- Finish
- Blanco + Madera
- Colour memory
- YES
- Sloping roof
- Max. 18º
- Number of blades
- 3
- Number of speeds
- 6
- Timer (H.)
- 1-2-4 H.
- Including rod
- 2 tijas
- Engine
- DC
- Engine power (W)
- 5 / 7.2 / 9.4 / 12.3 / 15.7 / 20
- Rotational speed (RPM)
- 164 / 187 / 208 / 226 / 245 / 260
- Air Flow (m3)
- 2340 / 2520 / 3060 / 3600 / 4770 / 5580
- Sound level (dB)
- 27 / 29 / 32 / 33 / 36 / 39
- Smart
- No
- Folding blades
- Yes
- Reversible blades
- NO
- Lighting
- Yes
- Room size (m²)
- Menor de 13
- Integrated blades
- No
