More info
Technical data sheet
Lighting
- LED 46W (integrated)
- Luminous flux: 5520 Lm.
- Dimmable light intensity
- Night light mode
- CCT. colour temp:
- 3000-4000-6000K
- (warm-neutral-cool)
- Lifetime: 30000h.
- ON/OFF: 15000
- CRI: >80
Functionalities
- DC motor

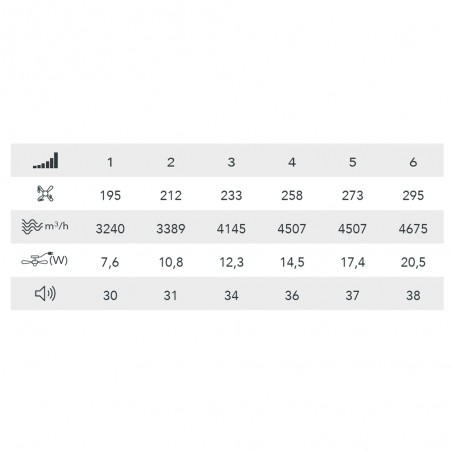

- 6 speeds
- Consumption (W): 7.6 / 10.8 / 12.3 / 14.5 / 17.4 / 20.5
- Speed (RPM): 195 / 212 / 233 / 258 / 273 / 295
- Air flow (m3/h): 3240 / 3389 / 4145 / 4507 / 4507 / 4675
- Noise level (dB): 30 / 31 / 34 / 36 / 37 / 38
- Breeze function
- Summer-Winter function
- Timer: 1-2-4 H.
- Power on memory

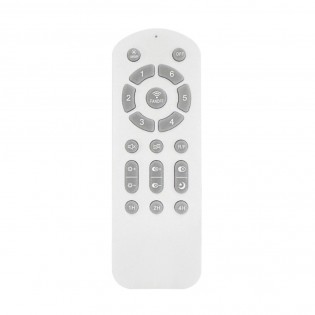

- Remote control (included)
Characteristics
- Height: 32-42 Cm.
- Diameter:
- Closed: 39 Cm.
- Open: 92 Cm.
- Finish: Silver
- Frame: Steel
- Retractable blades (3): PC
- Diffuser: PMMA
Other information
- Weight: 5.5 Kg,
- Suitable for rooms: <13 m²
- Roof pitch: Max. 18º
- Two shafts: 10-20Cm.
- Electrical class: I
- Voltage: 220-240 V.
- Frequency: 50/60 Hz
How to install the ceiling fan Miso Evo
Are you looking for a clear and visual guide to install your Wonderlamp ceiling fan? In this video we show you the complete process of installing the fan, step by step and in a simple way. Assembly from scratch of the fan, with instructions to follow in a visual way and practical advice for a safe and efficient installation. This video is designed for both professionals and customers who want to install the fan themselves in a quick and uncomplicated way.
Air Flow Crontol System (Summer-Winter)
The airflow control system will create a greater sense of comfort in both summer and winter. In summer, the descending air flow creates a cooling effect of the wind for a greater energy saving. In winter, the upward flow of air recirculates the increase of hot air to distribute heat efficiently throughout the room.
Useful tips to choose the right fan for your room
In rooms of more than 28 m² it can also be a good option to place more than one ceiling fan to center the regulation of the air flow of the area that we are using. The minimum height at which the fan must be installed is 2.40 m from the ground, in case of heights is more than 2.80 m an extension rod is required.
Ceiling fans by size
-
Small Fans
Fans with blades integrated inside or with a diameter of up to 107 centimetres are perfect for ceiling installation in small rooms (<13 m²).
-
Medium fans
For rooms between 13 and 20 m² it is recommended to use fans with moving blades with a diameter of between 107 and 132 centimetres.
-
Large fans
If your room is larger than 20 m², ceiling fans with a diameter of more than 132 centimetres are ideal.
Wonderlamp - Wonderlamp.shop
Wonderlamp is a brand that offers to our clients different essential products in LED lighting. It’s a careful and detailed selection of different options designed for a room’s complete lighting. Wonderlamp has an entrenched position and it’s one of the most influential shops in the lighting market thanks to its quality and competitive price. It’s now a benchmark and a highly reliable brand given the quality of their products. A leading, and trustworthy brand with every guarantee.
Technical specifications
- Brand
- Wonderlamp
- Style
- Modern
- Height (cm)
- 32 - 42
- Material
- Steel - PMMA
- Diameter (cm)
- 39 - 92
- Net Weight (kg)
- 4,5
- Lighting type
- LED
- Cap
- Built in
- Power (W.)
- 45
- Lumens (lm)
- 4500
- Colour temperature (K)
- 3000 - 4000 - 6000
- CRI
- More than 80
- Dimmable
- Yes
- Switch on (Num.)
- 15000
- Useful life (Hours)
- 30000
- IP
- 20
- Voltage (V.)
- 220 - 240
- Protection class
- I
- EU Energy label
- F
- Remote control
- Yes
- Secondary Material
- PC
- Finish
- Silver
- Colour memory
- YES
- Sloping roof
- Max. 15°
- Number of blades
- 3
- Number of speeds
- 6
- Inverse Function
- YES
- Timer (H.)
- 1-2-4 H.
- Including rod
- 10cm. y 20cm.
- Engine
- DC
- Engine power (W)
- 7.6 / 10.8 / 12.3 / 14.5 / 17.4 / 20.5
- Rotational speed (RPM)
- 195 / 212 / 233 / 258 / 273 / 295
- Air Flow (m3)
- 3240 / 3389 / 4145 / 4393 / 4507 / 4675
- Sound level (dB)
- 30 / 31 / 34 / 36 / 37 / 38
- Smart
- Yes
- Night light
- Yes
- Folding blades
- Yes
- Reversible blades
- NO
- Lighting
- Yes
- Room size (m²)
- Menor de 13
- Integrated blades
- No
- Colección
- Miso Evo
Enquiries
Latest customer questions about this product
There are no enquiries for this product
Sorry, no results found.
Do you have any questions about this product?
Send us your questions about this product by completing the form below:
Sorry, an error has occurred while making the FAQ.
You must accept the the Privacy Policy.
The FAQ has been created correctly. Please wait to be verified.

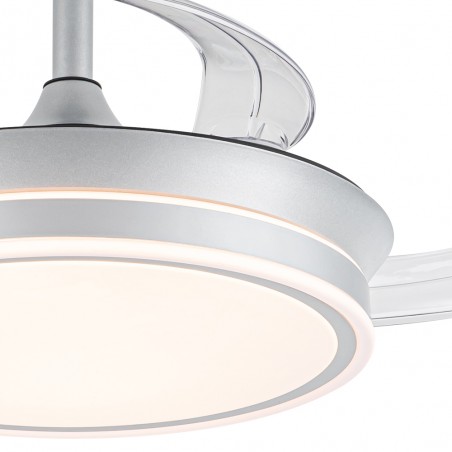

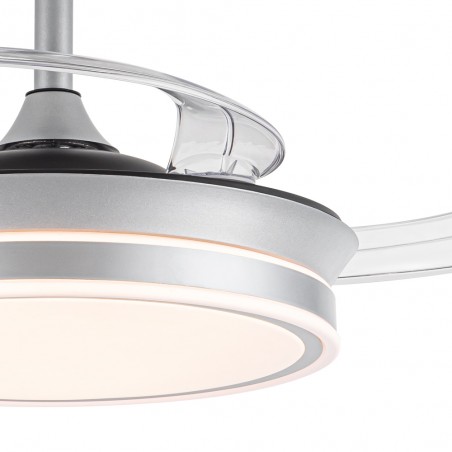

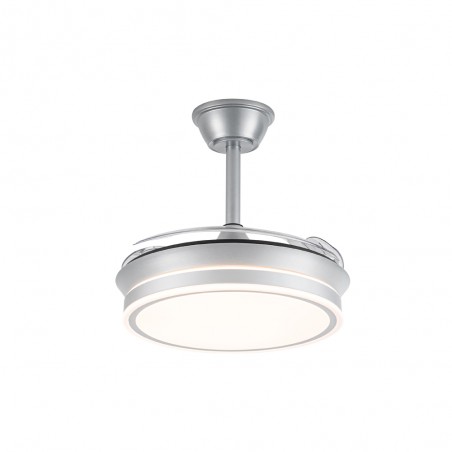

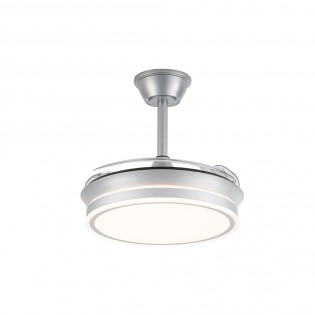

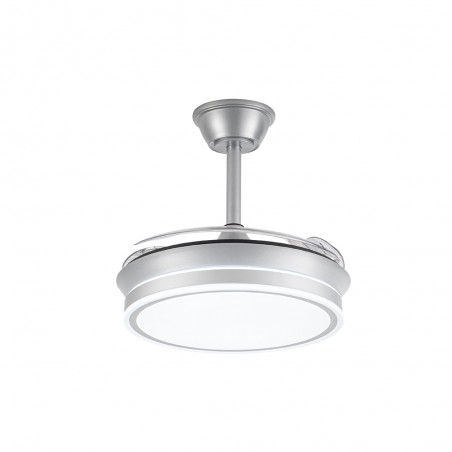

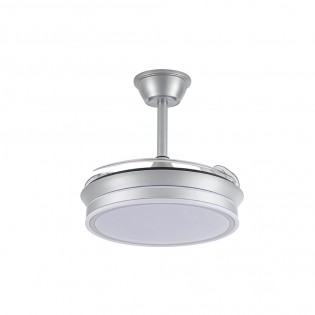

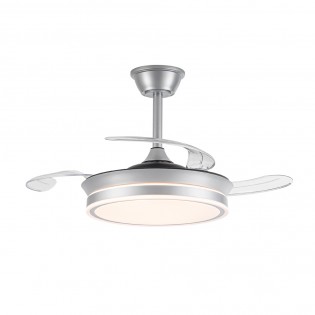

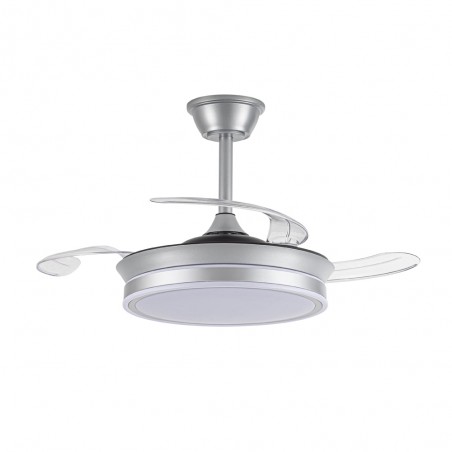

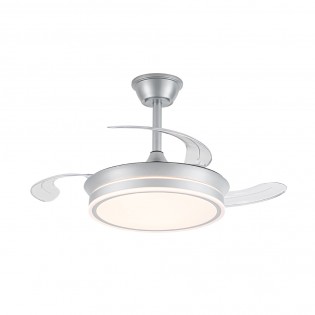

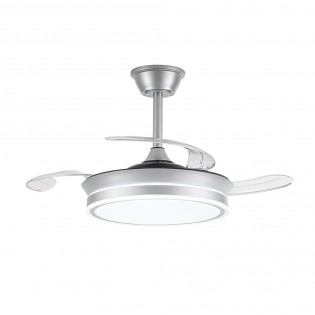

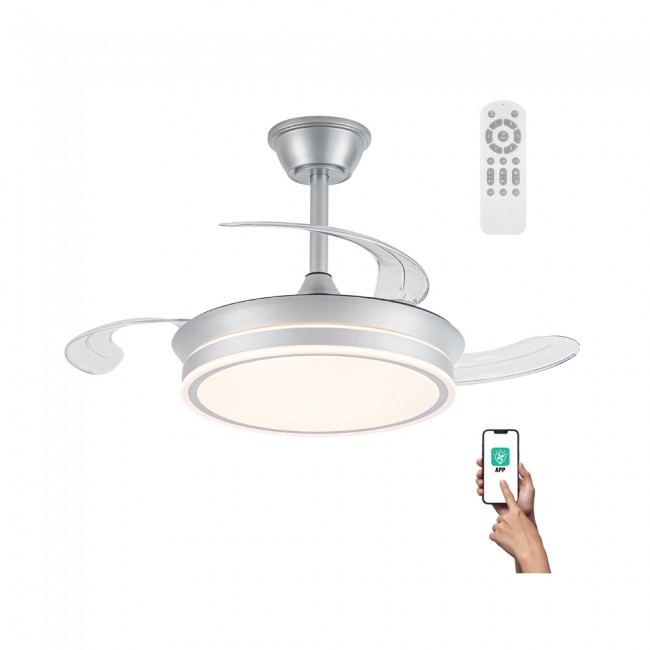

Silent ceiling fan with retractable Miso Mini Evo blades. It has integrated LED lighting dimmable in intensity and colour temperature. Six rotation speeds, reverse rotation mode, breeze function, night light mode and timer. You can control the fan with the remote control or with your smartphone via an app (downloadable with QR). Available in white, black or silver finish. Ideal for bedrooms.

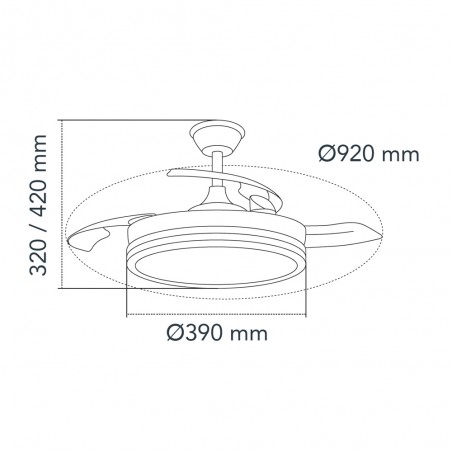

Dimensions:
- Height: 32 - 42 cm. (Includes two stems: 10 and 20 cm.)
- Diameter of the fan when closed: 39 cm.

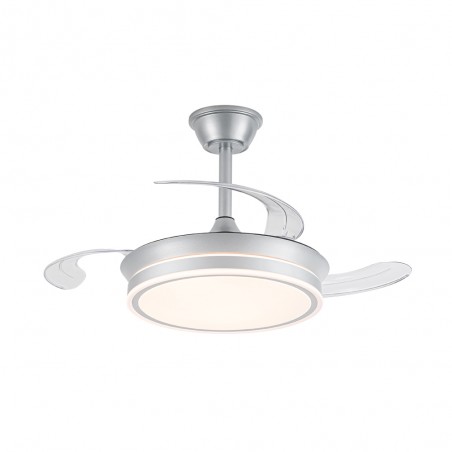

- Diameter with blades unfolded: 92 cm.
SMART APP: You can control the fan from a smartphone via an app (downloadable with QR).
