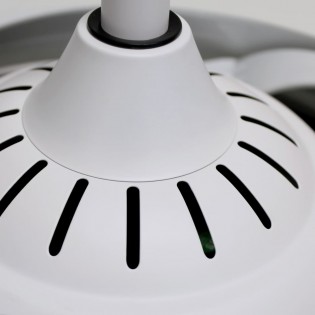

LED fan with foldable blades Batán CCT Smart (35W)
Ref:
85-033-36-000
LED fan with foldable blades Batán CCT Smart (35W)
€260.65
Tax included
Tax included
27882
View ratings
LED fan with folding Batán LED blades. When lighting the room you can regulate the light intensity and select between three colour temperatures. Silent DC motor with six speeds, reverse function and timer. SMART technology for control from smartphone with the Tuya Smart app.
Dimensions: Height 38.5-51 cm.
- Concealed blades: Diameter 50 cm.
- Blades unfolded: Diameter 107 cm.
85-033-36-000
Approximate date of delivery is between Friday 3 May 2024 and Monday 6 May 2024
Frequently asked questions
More info
Technical data sheet
Lighting
- LED 35W (integrated)
- Luminous flux: 3200 Lm.
- CCT temperature:
- 3000/4000/6000ºK
- Lifetime: 30000h.
- ON/OFF: 15000
- CRI: >80
- P.F.: 0.9
Functionalities
- Quiet DC motor
- 6 speeds
- Power (W): 4 5/7/12/19/34
- RPM: 110 /121/132/143/154/164
- Sound level (dB): 19/23/28/32/32/35/38
- Air flow rate (m3/h): 6540/7200/8100/8940/10560/10800
- Breeze function
- Summer-Winter function
- Timer: 1-3 H.
- Power on memory
- Remote control (included)
- Smart lighting (Tuya Smart app)
Characteristics
- Height: 38,5-51 Cm.
- Diameter:
- Closed: 50 Cm.
- Open: 107 Cm.
- Finish:
- White / Black
- Frame: Steel
- Retractable blades (4): ABS
- Diffuser: PMMA
Other information
- Suitable rooms: 13-20 m²
- Roof pitch: Max. 13º
- Including two rods
- Electrical class: II
- Voltage: 220-240 V.
- Frequency: 50/60 Hz.
Assembly and installation of the BATAN ceiling fan
Discover how to assemble and install the BATAN LED ceiling fan in your home. Fan with folding blades for modern style living rooms and dining rooms. When lighting the room you can regulate the light intensity and select between three colour temperatures. Quiet DC motor with six speeds, reverse function and timer. SMART technology for smartphone control with the Tuya Smart app.
Air Flow Crontol System (Summer-Winter)
The airflow control system will create a greater sense of comfort in both summer and winter. In summer, the descending air flow creates a cooling effect of the wind for a greater energy saving. In winter, the upward flow of air recirculates the increase of hot air to distribute heat efficiently throughout the room.
Useful tips to choose the right fan for your room
In rooms of more than 28 m² it can also be a good option to place more than one ceiling fan to center the regulation of the air flow of the area that we are using. The minimum height at which the fan must be installed is 2.40 m from the ground, in case of heights is more than 2.80 m an extension rod is required.
Ceiling fans by size
-
Small Fans
Fans with blades integrated inside or with a diameter of up to 107 centimetres are perfect for ceiling installation in small rooms (<13 m²).
-
Medium fans
For rooms between 13 and 20 m² it is recommended to use fans with moving blades with a diameter of between 107 and 132 centimetres.
-
Large fans
If your room is larger than 20 m², ceiling fans with a diameter of more than 132 centimetres are ideal.
CristalRecord - Wonderlamp.shop
CristalRecord has a long history in the distribution of interior lighting. Since 1995, the brand has evolved to become a leading company in the design, manufacture and distribution of lighting products. CristalRecord works with the aim of offering its customers solutions to the real needs of the domestic and commercial market. Specialising in LED lighting, their commitment to quality, R&D, flexibility and experience allows them to develop quality products with unique and innovative solutions.
Technical specifications
- Brand
- CristalRecord
- Lamp type
- Fan
- Lighting by room
- Living - Dining room
- Style
- Modern
- Height (cm)
- 51
- Material
- PVC - ABS
- Diameter (cm)
- 50 - 107
- Net Weight (kg)
- 8,2
- Lighting type
- LED
- Cap
- Built in
- Power (W.)
- 35
- Lumens (lm)
- 3200
- Colour temperature (K)
- 3000 - 4000 - 6000
- Dimmable
- Yes
- Switch on (Num.)
- 15000
- Useful life (Hours)
- 30000
- IP
- 20
- Voltage (V.)
- 220-240
- Protection class
- I
- Remote control
- Yes
- Finish
- Blanco / Madera / Negro
- Colour memory
- YES
- Sloping roof
- Max. 19°
- Number of blades
- 4
- Number of speeds
- 6
- Including rod
- 2 tijas
- Engine
- DC
- Engine power (W)
- 4 / 5 / 7 / 12 / 19 / 34
- Rotational speed (RPM)
- 110 / 121 / 132 / 143 / 154 / 164
- Air Flow (m3)
- 6540 / 7200 / 8100 / 8940 / 10560 / 10800
- Sound level (dB)
- 19 / 23 / 28 / 32 / 35 / 38
- Smart
- Yes
- Folding blades
- Yes
- Reversible blades
- NO
- Lighting
- Yes
- Room size (m²)
- 13-20
- Integrated blades
- No
