LED Ceiling Fan Byan Exterior CCT Dim (22W)

Ref: 85-108-65-105
Tax included
View ratings

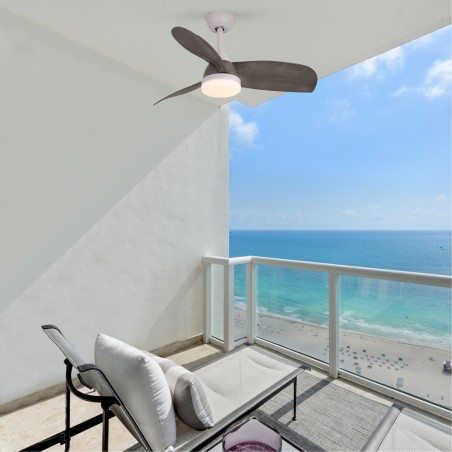

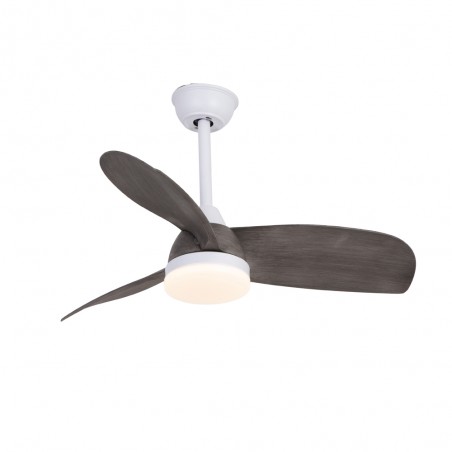

Byan ceiling fan for balconies, terraces and porches. Silent three-blade fan designed specifically for outdoor areas. DC motor with six rotation speeds, reverse function and timer to program its shutdown and LED lighting adjustable in colour temperature and lumen intensity. Remote control. IP65.

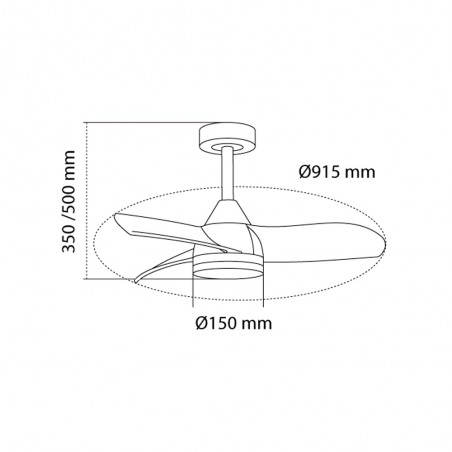

Dimensions: Height 35-50 cm. Diameter 91.50 cm.

Tax included
Quantity

85-108-65-105
In stock

Approximate date of delivery is between Monday 22 September 2025 and Tuesday 23 September 2025

Data sheet
Frequently asked questions
Related
More info
CristalRecord - Wonderlamp.shop

Technical data sheet

Lighting

  • LED 22W (integrated)
  • Luminous flux: 2000Lm.
  • Dimmable light intensity
  • Colour temperature (CCT):
  • 3000-4000-6000K
  • warm-neutral-cool
  • Night light mode
  • Lifetime: 30000H
  • ON/OFF: 15000H
  • CRI: >80

Functionalities

  • DC motor
  • 6 speeds

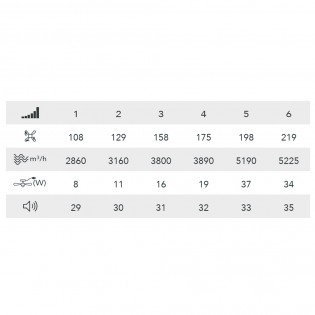

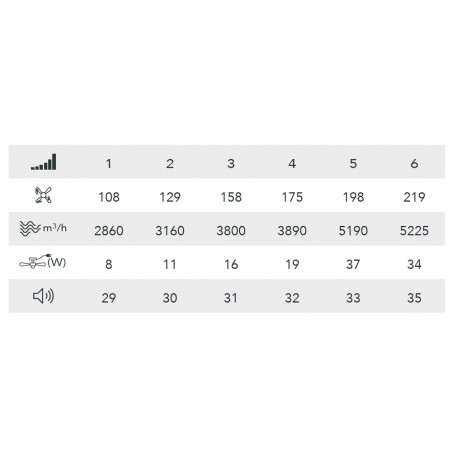

  • Consumption (W): 8/11/16/19/37/34
  • Speed (RPM): 108/129/158/175/198/219
  • Airflow (m3/h): 2860/3160/3800/3890/5190/5225
  • Noise level (dB): 29/30/31/32/33/35
  • Summer-winter function
  • Breeze function
  • Switch-on memory
  • Timer: 1-4-8h.

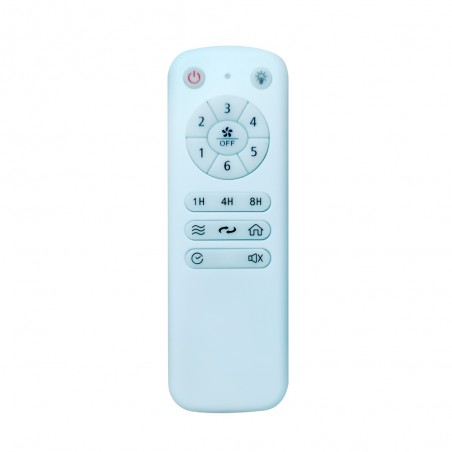

  • Remote control

Characteristics

  • Height: 35-50 Cm.
  • Diameter: 91.50 Cm.
  • Finish:
  • White + Ash
  • Structure: Steel
  • Blades (3): ABS
  • Diffuser: PVC

Other information

  • Weight: 8.5 Kg.
  • Grade: IP65
  • Including two blades: 10-20 Cm.
  • Suitable for rooms: 13-20 m².
  • Suitable for sloping ceilings: <18º.
  • Electrical class: I
  • Voltage: 220-240 V.
  • Frequency: 50/60 Hz

Air Flow Crontol System (Summer-Winter)

summer-winter-fuction

The airflow control system will create a greater sense of comfort in both summer and winter. In summer, the descending air flow creates a cooling effect of the wind for a greater energy saving. In winter, the upward flow of air recirculates the increase of hot air to distribute heat efficiently throughout the room.

Useful tips to choose the right fan for your room

fans-dimensions-rooms

In rooms of more than 28 m² it can also be a good option to place more than one ceiling fan to center the regulation of the air flow of the area that we are using. The minimum height at which the fan must be installed is 2.40 m from the ground, in case of heights is more than 2.80 m an extension rod is required.

Ceiling fans by size

  • Small Fans

    Fans with blades integrated inside or with a diameter of up to 107 centimetres are perfect for ceiling installation in small rooms (<13 m²).

  • Medium fans

    For rooms between 13 and 20 m² it is recommended to use fans with moving blades with a diameter of between 107 and 132 centimetres.

  • Large fans

    If your room is larger than 20 m², ceiling fans with a diameter of more than 132 centimetres are ideal.
