- Brand: Wonderlamp.shop
Features of each recessed:
- Includes GU10 lamp holder (direct to 220v).
- IP: 20.
- Tilting angle: 30º.
- Turning angle: 351º.
- Drill: Ø80 mm (ceiling recess hole)
- Material: Aluminium.
- 2 years warranty.
- Bulb not included
NO TRANSFORMER NEEDED!
Safety-related distances.
1.- Between the lamp and surfaces or objects not illuminated must not be less than 0.5 m.
2.- Between recessed appliances not less than 0.5m.
3.- Between the highest part of the recessed luminaire and the ceiling not less than 2.5 cm.
4.- Between the vertical walls (inside the ceiling) and the body of the built-in device once installed not less than 7.5 cm.
5.- Verify the correct housing of the bulb in the lamp holder.
Installation on the ceiling. Before starting any assembly or installation, make sure that the power has been disconnected.
1.- Drill a hole in the ceiling to ensure a minimum gap and that it does not coincide with beams, pipes or electrical cables (see dimensions of the socket hole). Connect the Gu10 lamp holder to the mains. Insert the recessed luminaire into the ceiling and remove the lamp holder through the hole in the recessed luminaire.
2.- No earth connection is required. If there is, make sure that it is totally isolated and that it cannot have any type of contact. Make sure that no metal parts come into contact with any other grounded metal apparatus.
Technical specifications
- Brand
- Wonderlamp
- Lamp type
- Recessed Light
- Lighting by room
- Hallway - Entrance
- Style
- Classic
- Height (cm)
- 2,5
- Length (cm)
- 9
- Material
- Metal
- Width (cm)
- 9
- Net Weight (kg)
- 0,95
- Lighting type
- Bulb
- Cap
- GU10
- Bulb included
- No
- Maximum Power (W.)
- 8
- Number of lights
- 1
- Angle (º)
- 351
- Opening angle (º)
- 30
- Drill (cm)
- 8
- Finish
- White
- Tilting angle (º)
- 30
Enquiries
Latest customer questions about this product
There are no enquiries for this product
Sorry, no results found.
Do you have any questions about this product?
Send us your questions about this product by completing the form below:
Sorry, an error has occurred while making the FAQ.
You must accept the the Privacy Policy.
The FAQ has been created correctly. Please wait to be verified.
Pack of ten recessed Classic square model. Simple damage and aluminium structure in white ideal for passing unnoticed in ceilings of passageways, living rooms or dining rooms. As its head is orientable, you will be able to direct the illumination towards where you need it in every moment.

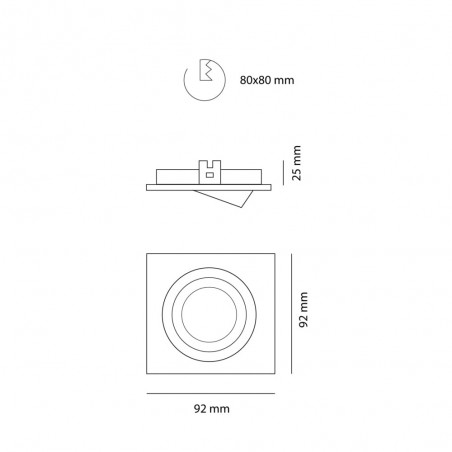

Dimensions: Height 2,5 cm. Length 9 cm. Width 9 cm.
