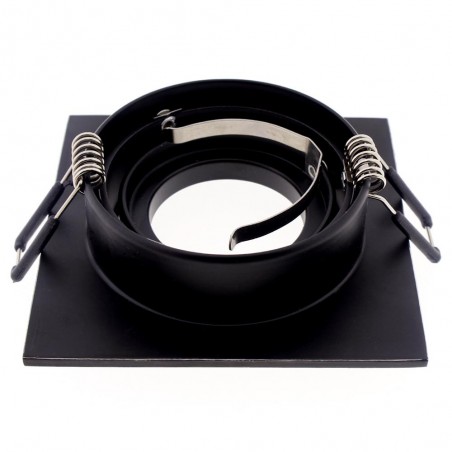

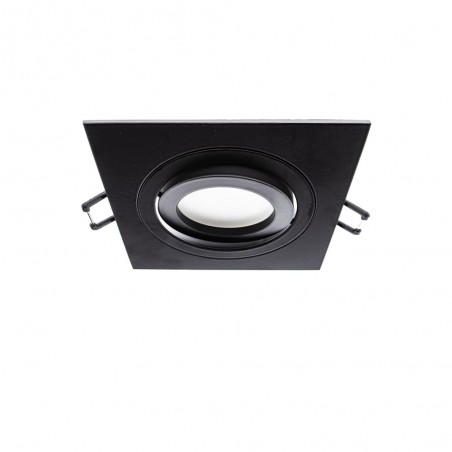

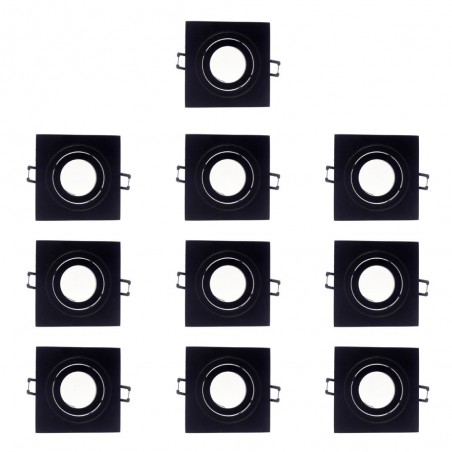

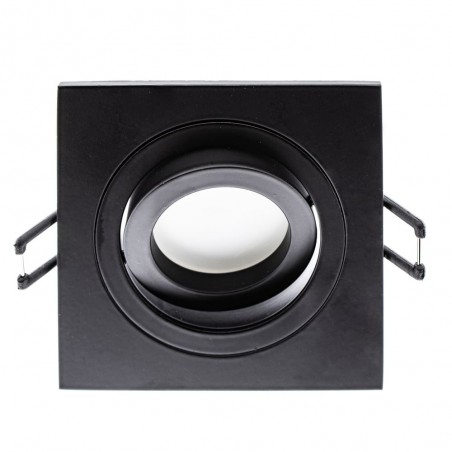

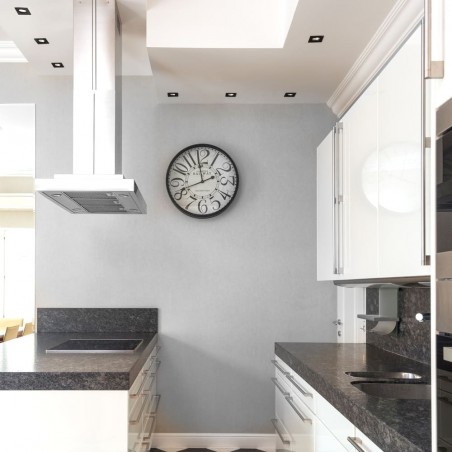

Pack of 10 Downlights Wonderlamp in black colour. Modern and elegant, includes lamp holder for GU10 light bulb. 2 years warranty. Its 30 degrees tilting function allows you to direct the light creating different types of environments. Ideal for lighting corridors, living rooms, bedrooms, etc.

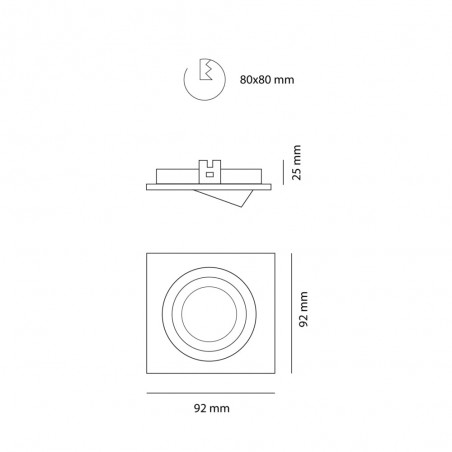

Dimensions: Height 2.5 cm. Length 9.3 cm. Width 9.3 cm Drill 7 cm.
Warning: Last items in stock!
Availability date: 0001-01-01
- Brand: Wonderlamp.shop.

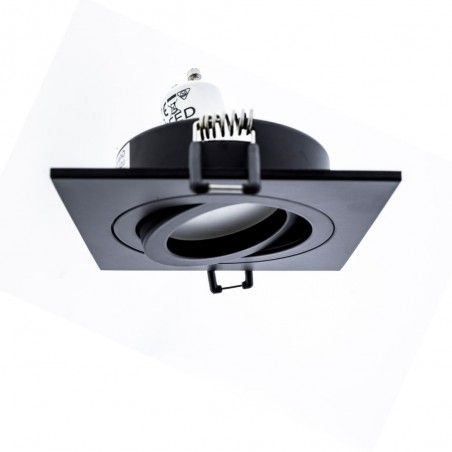

- GU10 Lampholder (included).
- IP: 20.
- Drill: 7 cm.
- Material: aluminium.
- Tilting angle: 30º
- 2 years warranty.
- Protection class I (insulation).
- Light bulbs not included.
TRANSFORMER IS NOT NECESSARY!
1.- Between the lamp and unlighted surfaces or objects should not be less than 0.5 m.
2.- Between recessed light fixtures not less than 0.5 m.
3.- Between the highest part of the embeddable and the ceiling not less than 2.5 cm.
4.- Between the vertical walls (inside the ceiling) and the recessed light fixture body once installed should not be less than 7.5 cm.

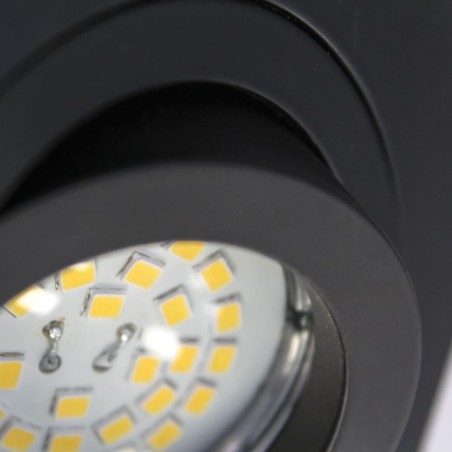

5.- Check the correct placement of the bulb in the lamp holder.

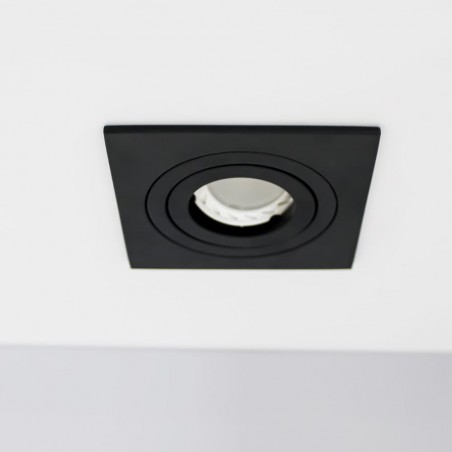

Ceiling installation. Before starting any assembly or installation, make sure you have disconnected the electric current.
1.- Make a hole in the ceiling that ensures a minimum gap and that does not coincide with beams, pipes or electric cables (see embedding hole dimensions). Connect the GU10 lamp holder to the electrical current. Insert the recess light fixture into the ceiling and take the lamp holder out through the hole of the downlight.
2.- Ground connection is not necessary. If there is any, make sure that it is totally insulated and it can not have any contact. Make sure that any metal part do not come in contact with another metal device with ground connection.
